For cylinder conversion systems we assign numbers to the nozzles instead of using the rifle model. This is because the nozzle length can vary between the same gun model when made by different manufacturers. This can be from the manufacturer designing the rifle differently, or from the thickness of the gearbox shell affecting how far from the hop-up chamber the cylinder sits. Therefore one nozzle length may work in different rifle models but not necessarily work in the same model from a different manufacture. For example, a standard MP5 could require any of 4 different nozzle lengths depending on the manufacturer.

For this reason we produce numerous different nozzle lengths to provide compatibility for a wide range of replicas. Below we are listing the make and model of the replicas which the nozzle length is most commonly used with but it may be compatible with more models. For a list of replicas which we have measured and calculated the compatible nozzle length, please visit our Help Center.

Once you determine what number nozzle your replica requires, that number is universal across all engines that use the numbered nozzle system (excluding some model specific Kythera systems). So, if you determine your replica takes a #11 nozzle, then you will need to install the #11 nozzle for whichever system you are converting your replica with.

If your gun is not listed in the compatibility database in our Help Center, a recommended nozzle length may be calculated by measuring your original gearbox and nozzle. Using a set of calipers and following the diagram below, measure these specific areas of the gearbox and input them into the following formula. Please note that measurements need to be in thousands of an inch (0.001").

F1 Centerline Nozzles: TIP = F + B - (A/2) - .057.

(Click to Enlarge)

A more precise measurement (which accounts for the hopup and bucking in use) may be obtained by installing a nozzle into the system which is slightly too long for the replica and measuring the nozzle setback when placed into the hopup.

The measured tip length should be within +/- 0.010" of an exiting nozzle to be compatible. If the tip length you measure does not match up to a production nozzle within +/- 0.010" then a nozzle is not currently made for that rifle. However, please contact us with your measurements as custom nozzles can be special ordered.

Num	Original Model	Tip (Inches)	OAL (Inches)
1	TM M4/M16, A&K PKM, TM MP5 A/SD, ICS MP5 A/SD, G&G KAC SR-25E2	0.855	1.737
2	CYMA AK, CYMA MP5 A/SD, G&G UMP	0.893	1.775
3	CA M249/MK46, A&K M249/MK46	0.84	1.722
4	G&G GR-25	1.481	2.363
5	A&K SR-25, JG SR-25, ICS SIG 550/551/552	0.994	1.876
6	KA FAL, TM MP5K, A&K M240	.0925	1.807
7	PTS MASADA, CA SCAR-L	1.165	2.047
8	VFC SCAR-H	1.538	2.42
9	EF/S&T TAR-21 COMP	0.907	1.789
10	EF ARX160 ELITE	1.517	2.399
11	CA KAC LMG, VFC MP5 A/SD	0.778	1.66
12	LCT AK-47/74/M, LCT VSS/AS VAL	0.866	1.748
13	A&K MASADA/ACR,	1.377	2.259
14	KA CZ 805 BREN, CG M249 FEATHERWEIGHT, A&K M60	1.42	2.302
15	EF/ARES G36KV/CV, JG G36	1.085	1.967
16	EF/S&T G36C	1.072	1.954
17	CA AUG	1.035	1.917
18	G&G MP5 A/SD	0.826	1.708
19	VFC/ECHO1 XCR	1.257	2.139
20	CA G36, CYMA SR-25	1.057	1.939

Everything Except - Blem, Purr, UGS, CGS

Price

Collections

F1™ Nozzles

F1 BV214A Bullet Valve

Fire Control Unit, Rev. 3, Universal

Bullet Valve Lead for 214 and 309 solenoids

Complete Seal Set, MRS

Air Input Line, 6mm (Black)

Complete O-Ring Set, F1

0-220psi Gauge, 25mm

Braided Air Line

Gas Stock Adapter, JAG Arms Scattergun

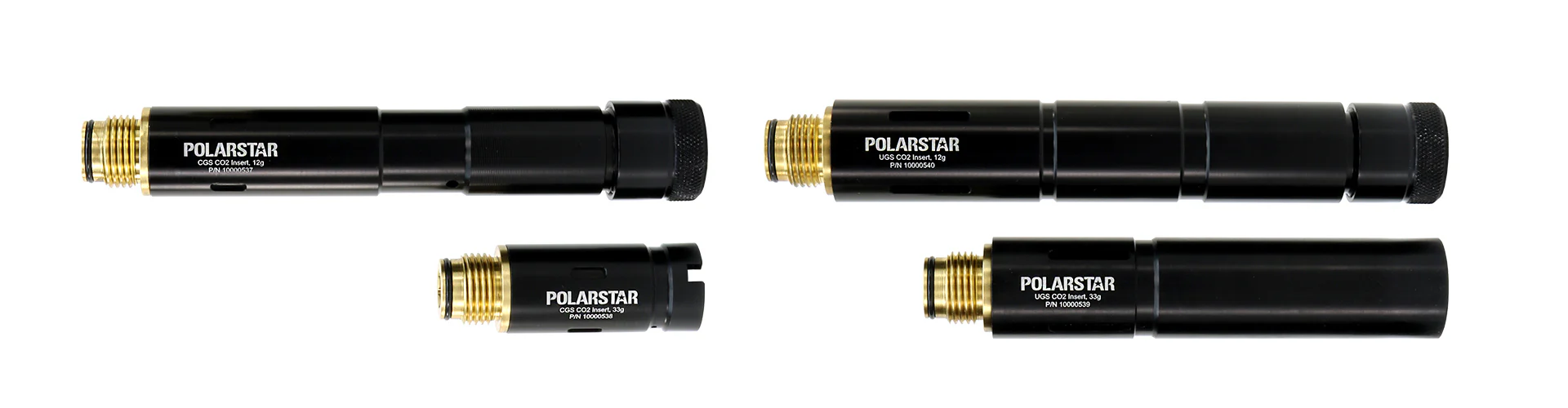

CO2 Inserts
